Ken's new rollcage

Postby Stoffregen M-sports » Tue Nov 29, 2011 8:47 am

Hi guys. I'm building a new cage for Ken's RZR and I figured this would be a good place to post pics of the process.

Pics coming soon!
Matt Stoffregen
stoffregenmotorsports.com

Stoffregen M-sports
Just realized teal ATV clothes are lame
Posts: 9
Joined: Tue Nov 29, 2011 8:44 am
Location: Cool, CA
Contact:

Re: Ken's new rollcage

Postby Stoffregen M-sports » Wed Nov 30, 2011 10:21 am

Starting the build. Take good measurements from a solid baseline. In this case I took the tires off and set the whole machine on a rolling cart to keep it firm. Ken wanted to lower the roof a bit so that is the plan. The problem is making sure he has enough headroom with his helmet on. He's having me mount up a speaker system that might get in the way. He's coming over Saturday for a fitting.

Here's a couple of pics.

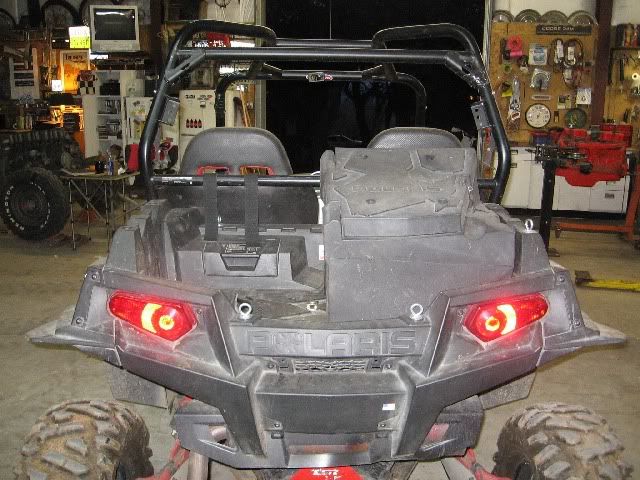

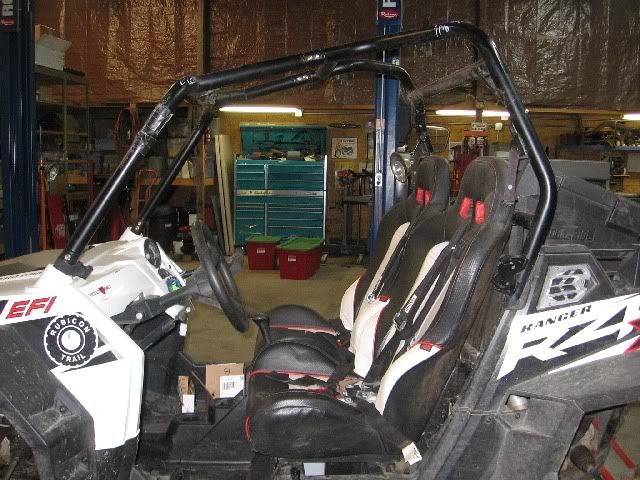

Stock

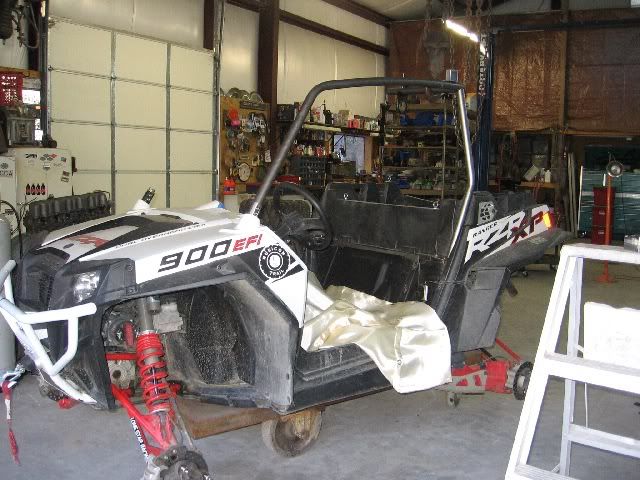

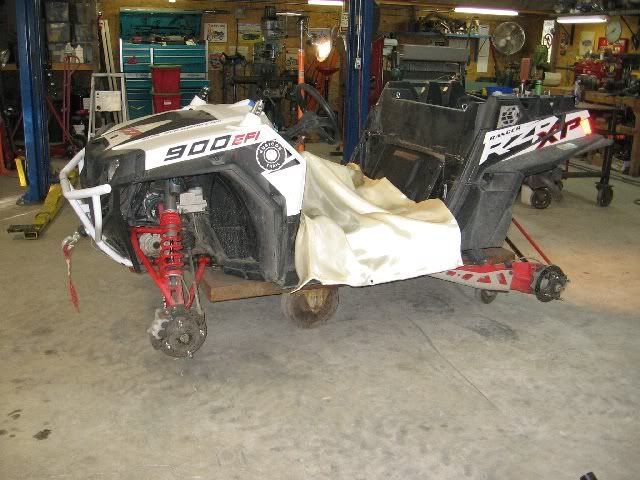

Disassembled and on the cart

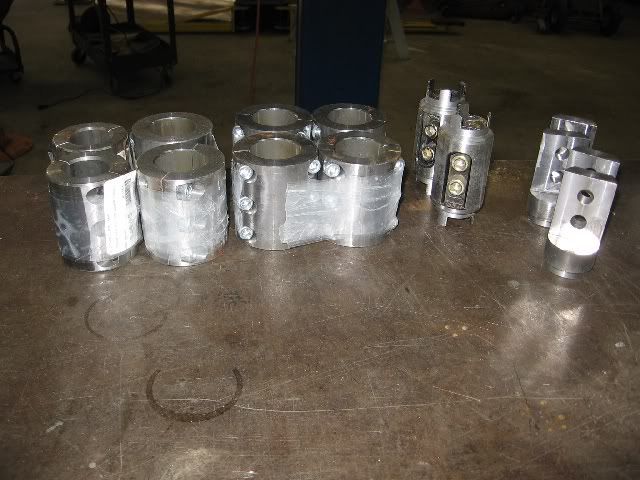

Shiny new parts
Matt Stoffregen
stoffregenmotorsports.com

User avatar
Mr. Green
Is Totally Obsessed
Posts: 583
Joined: Sun Dec 06, 2009 11:14 pm
Location: Chico, CA

Re: Ken's new rollcage

Postby Mr. Green » Wed Nov 30, 2011 10:39 am

dam the new coupling points look dam beefy.
09 can-am renegade

User avatar
Ken
Site Admin
Posts: 7501
Joined: Wed Jan 07, 2004 4:23 pm
Location: Auburn, CA
Contact:

Re: Ken's new rollcage

Postby Ken » Wed Nov 30, 2011 3:45 pm

LOL...you're all seeing it before me!
The last words spoken before a YouTube video is filmed: "Hold my beer, now watch this..."

Regards,
Ken Hower
RTF Director
http://www.rubicontrail.org/

Stoffregen M-sports
Just realized teal ATV clothes are lame
Posts: 9
Joined: Tue Nov 29, 2011 8:44 am
Location: Cool, CA
Contact:

Re: Ken's new rollcage

Postby Stoffregen M-sports » Thu Dec 01, 2011 11:35 am

Progress report: it's coming along nicely. I've got the main cage section mostly done (bent, cut and tacked).

I used the stock ends for the main forward downbar because they interface better than the new ends.

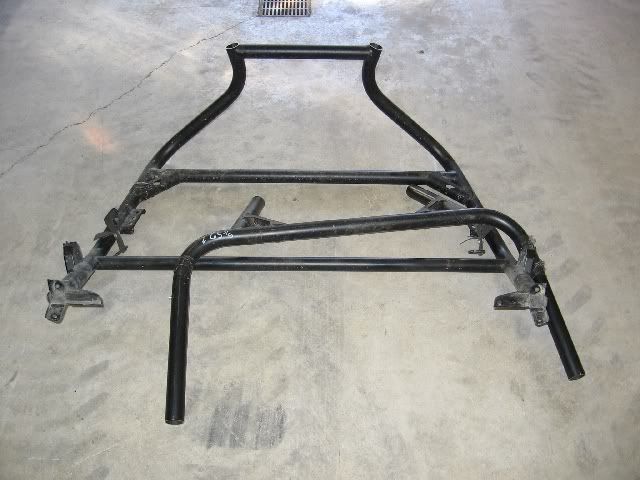

Here's what's left of the stock cage after cutting the pieces off.


Here's a sneak peek of the main section. Jesse James (the builder) said once "it's easy to build one side of a gas tank..."
And it looks taller than it really is. It is actually 2 inches shorter than stock.

Matt Stoffregen
stoffregenmotorsports.com

User avatar
Ken
Site Admin
Posts: 7501
Joined: Wed Jan 07, 2004 4:23 pm
Location: Auburn, CA
Contact:

Re: Ken's new rollcage

Postby Ken » Sun Dec 04, 2011 5:33 pm

Came over Saturday....did some measurements....helped Matt hold parts while he made the rear bumper.






The last words spoken before a YouTube video is filmed: "Hold my beer, now watch this..."

Regards,
Ken Hower
RTF Director
http://www.rubicontrail.org/

User avatar
EigerMike
Certified: OBSESSED
Posts: 1800
Joined: Wed Apr 23, 2008 5:05 pm
Location: Orland ca

Re: Ken's new rollcage

Postby EigerMike » Mon Dec 05, 2011 6:05 pm

very nice guys! looking really good its crazy how thin the stock roll cage are ,they look fine untill you cut them and see it!keep up the great work and pics! =D>
South Side Keeper

Paynes Creek 2017

User avatar
Kodiak
Is Totally Obsessed
Posts: 577
Joined: Wed Oct 17, 2007 4:07 pm
Location: colfax

Re: Ken's new rollcage

Postby Kodiak » Sat Dec 10, 2011 10:11 pm

Matt looks great! thanks for the in progress pics very cool
NOW GET IT DONE!!! i want to see how it does at moonrocks :)
Angelo

My Business mention ATV Obsession and i will hook you up.
http://www.mygemologist.com
K0HMR
My ATV!!
2006 Kodiak 450
warn 2500 winch, heated hand grips, and full custom skid plates with wrap around steel fender guards :) and 25" Bighorn tires

Stoffregen M-sports
Just realized teal ATV clothes are lame
Posts: 9
Joined: Tue Nov 29, 2011 8:44 am
Location: Cool, CA
Contact:

Re: Ken's new rollcage

Postby Stoffregen M-sports » Sun Dec 11, 2011 9:45 pm

Kodiak wrote:Matt looks great! thanks for the in progress pics very cool
NOW GET IT DONE!!! i want to see how it does at moonrocks :)
I know. I work slow. I'm also "Daddy-day-care" so I only really get to work 3.5 days a week.
Matt Stoffregen
stoffregenmotorsports.com

Stoffregen M-sports
Just realized teal ATV clothes are lame
Posts: 9
Joined: Tue Nov 29, 2011 8:44 am
Location: Cool, CA
Contact:

Re: Ken's new rollcage

Postby Stoffregen M-sports » Sun Dec 11, 2011 9:49 pm

Here's a couple more pics. I will have it done this week, so you guys can start lobbying Ken to go wheeling.

We changed the main hoop diagonals to a upside down "V" instead of the one diagonal.

Tying in the rear "bumper".

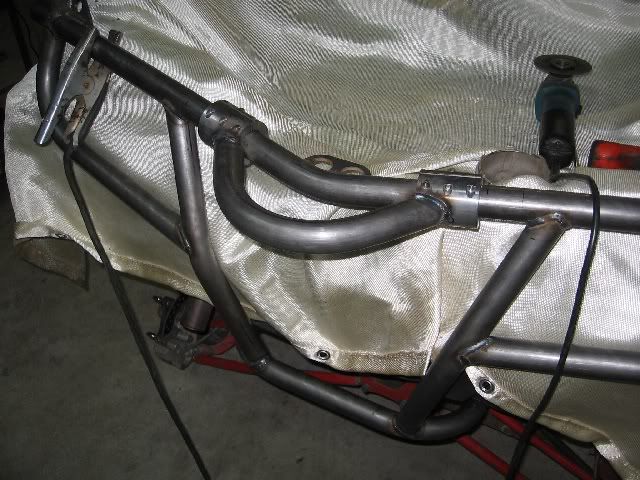

The start of the tire carrier.

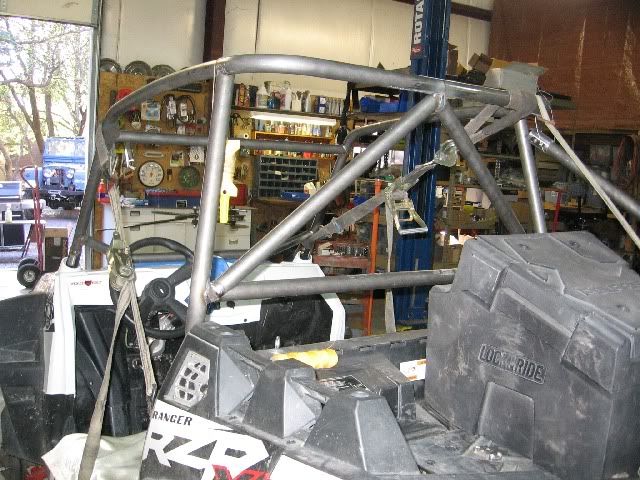

Mostly complete. The bars in the roof area are for Ken's sound system. I made them out of 1" x .120" DOM for space savings.
Matt Stoffregen
stoffregenmotorsports.com

Stoffregen M-sports
Just realized teal ATV clothes are lame
Posts: 9
Joined: Tue Nov 29, 2011 8:44 am
Location: Cool, CA
Contact:

Re: Ken's new rollcage

Postby Stoffregen M-sports » Sun Dec 11, 2011 9:50 pm

Oh Yeah, I never wore teal Eddie Bauer.
Matt Stoffregen
stoffregenmotorsports.com

User avatar
Ken
Site Admin
Posts: 7501
Joined: Wed Jan 07, 2004 4:23 pm
Location: Auburn, CA
Contact:

Re: Ken's new rollcage

Postby Ken » Mon Dec 12, 2011 6:47 am

The last words spoken before a YouTube video is filmed: "Hold my beer, now watch this..."

Regards,
Ken Hower
RTF Director
http://www.rubicontrail.org/

User avatar
Ken
Site Admin
Posts: 7501
Joined: Wed Jan 07, 2004 4:23 pm
Location: Auburn, CA
Contact:

Re: Ken's new rollcage

Postby Ken » Sun Dec 18, 2011 6:42 pm

Got the RZR back from Matt! Left to do is small rack to mount on the roof for gear.....and powder coating.

Got Roof!

Love the lines

MSM and the disconnect.

Stereo mounted...just need to wire it.

Nice to have a spare tire.


The last words spoken before a YouTube video is filmed: "Hold my beer, now watch this..."

Regards,
Ken Hower
RTF Director
http://www.rubicontrail.org/

User avatar
EigerMike
Certified: OBSESSED
Posts: 1800
Joined: Wed Apr 23, 2008 5:05 pm
Location: Orland ca

Re: Ken's new rollcage

Postby EigerMike » Mon Dec 19, 2011 6:15 pm

really cool!!!!!!!!!!!!!!!!!!! neat seeing the build we need more stuff like that on here! :D i want to see it on fordice!!!
South Side Keeper

Paynes Creek 2017

User avatar
Kodiak
Is Totally Obsessed
Posts: 577
Joined: Wed Oct 17, 2007 4:07 pm
Location: colfax

Re: Ken's new rollcage

Postby Kodiak » Wed Dec 21, 2011 1:13 pm

NO Ken don't go on FORDYCE at least not until the spring :)

it looks sweet and having a spare is sweet!
Angelo

My Business mention ATV Obsession and i will hook you up.
http://www.mygemologist.com
K0HMR
My ATV!!
2006 Kodiak 450
warn 2500 winch, heated hand grips, and full custom skid plates with wrap around steel fender guards :) and 25" Bighorn tires
